Tempat asal:
Shanghai, Cina
Nama merek:
carterberg
Sertifikasi:
IATF16949
Nomor model:
CB-1

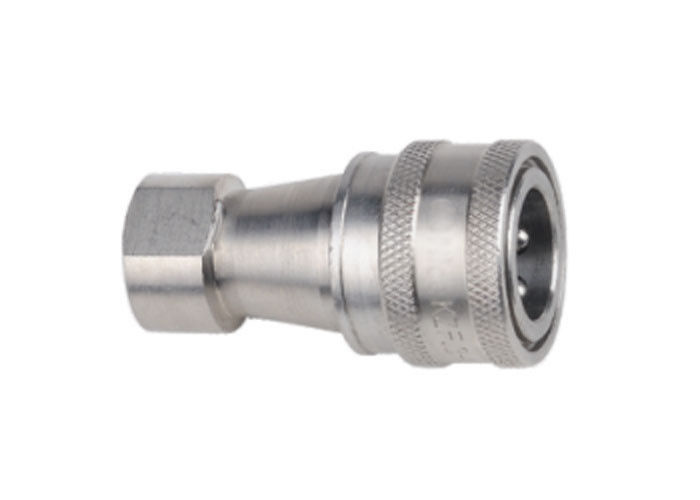

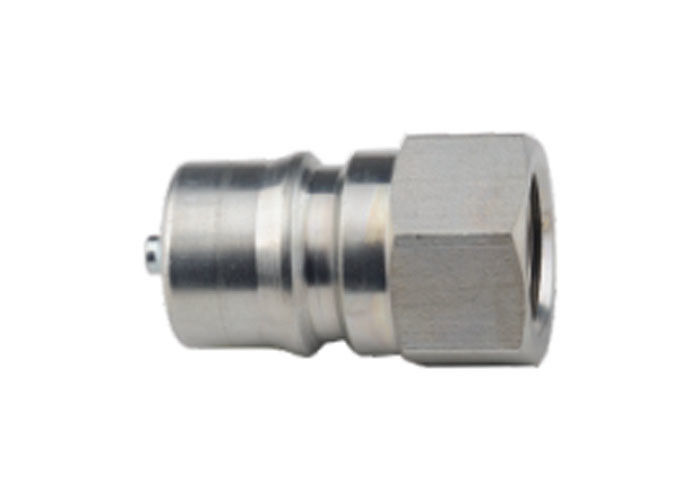

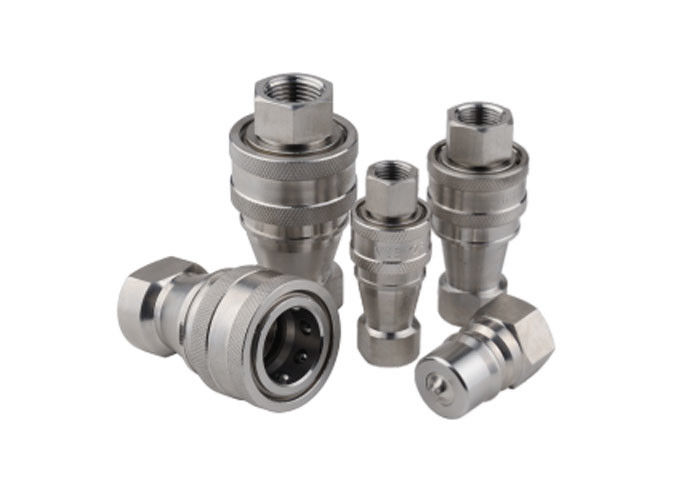

ISO7241B Stainless Steel Open dan Close Type Hydraulic Quick Coupler
Fitur
CB-SPL-1FG/ CB-SPM-1FG digunakan dalam peralatan konstruksi, aplikasi hidrolik.Kopling Double Shut-Off ini dapat ditemukan di mana saja bahwa saluran transfer cairan perlu dihubungkan dan diputuskan untuk operasi atau pemeliharaan peralatan, dan kehilangan cairan tidak diinginkan.
Bahan Standar
| Ukuran tubuh | Teman. | LS | Φ D | HS | A | T |
| 1/8" | CB-S2L-1F | 48 | 24 | 2 | 10 | ZG1/8 |
| 1/4 " | CB-S2L-1F | 58 | 28 | 2 | 12.5 | ZG1/4 |
| 3/8" | CB-S3L-1F | 65 | 35 | 2 | 13 | ZG3/8 |
| 1/2 " | CB-S4L-1F | 72 | 45 | 2 | 14 | ZG1/2 |
| 3/4 " | CB-S6L-1F | 88 | 55 | 2 | 17 | ZG3/4 |
| 1 " | CB-S8L-1F | 102 | 65 | 2 | 23 | ZG1 |
| 1-1/4" | CB-S10L-1F | 115 | 79 | 2 | 27 | ZG1-1/4 |
| 1-1/2" | CB-S12L-1F | 124 | 79 | 2 | 27 | ZG1-1/2 |
| 2" | CB-S16L-1F | 132 | 109 | 2 | 30 | ZG2 |
| Ukuran tubuh | Teman. | LP | C | HP | A | T |
| 1/8" | CB-P2L-1F | 29 | 19 | 6 | 10 | ZG1/8 |
| 1/4 " | CB-P2L-1F | 36 | 22.5 | 6 | 12.5 | ZG1/4 |
| 3/8" | CB-P3L-1F | 40 | 25 | 6 | 13 | ZG3/8 |
| 1/2 " | CB-P4L-1F | 44 | 28 | 6 | 14 | ZG1/2 |
| 3/4 " | CB-P6L-1F | 52 | 36 | 6 | 17 | ZG3/4 |
| 1 " | CB-P8L-1F | 62 | 40 | 6 | 23 | ZG1 |
| 1-1/4" | CB-P10L-1F | 70 | 45 | 6 | 27 | ZG1-1/4 |
| 1-1/2" | CB-P12L-1F | 75 | 49 | 6 | 27 | ZG1-1/2 |
| 2" | CB-P16L-1F | 80 | 52 | 6 | 30 | ZG2 |
