Place of Origin:
Shanghai, China
Nama merek:
Carterberg
Sertifikasi:
IATF16949
Model Number:
Threaded hydraulic quick couplings
| Feature | Description |
|---|---|
| Secure Threaded Engagement | Prevents disconnects from vibration or pressure spikes. |
| Residual Pressure Connection Capability | Safe coupling even when trapped hydraulic pressure is present. |
| Robust Construction | Hardened steel or high-strength brass options, fatigue and shock resistant. |
| Multiple Valve Configurations | Flat-face, dual shut-off, and tubular for media control. |
| Seal Material Versatility | NBR, Viton, or EPDM seals for various fluids and temperature ranges. |
| International Thread Standards | BSP, NPT, and metric compatibility. |
| Corrosion Resistance Options | Yellow zinc or zinc-nickel plating for harsh environments. |
| Coupling Type | Description | Best For |
|---|---|---|

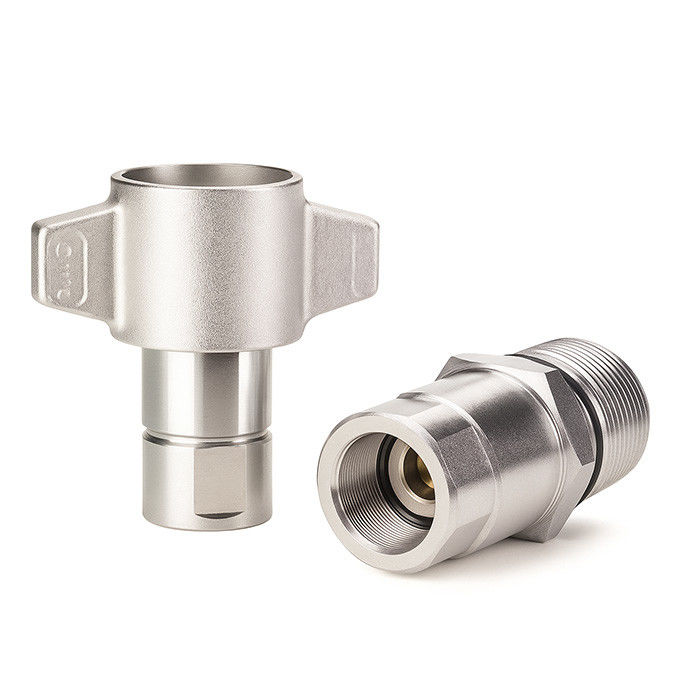

| Wing Nut Threaded | Manual fine-pitch thread, ideal for residual pressure handling. | Mining, hydraulic jacks |
| Flat-Face + Threaded Lock | Clean disconnection, non-spill, and vibration-resistant. | Oil rigs, mobile platforms |
| Compact Threaded with Sleeve Lock | Short profile, sealed exterior, dust and debris protection. | Utility vehicles, narrow installs |
| Brass Threaded Coupling | Cost-effective, corrosion-resistant, low-pressure rated. | Road service equipment, light-duty systems |
Carterberg offers a diverse range of threaded quick couplings tailored to your equipment requirements:
| Internal Model | Structure Type | Distinct Features | Ideal Use |
|---|---|---|---|
| CB-SPS-3FN-FD86 | Wing nut threaded | Connect under residual pressure, rugged build | Mining hydraulics |
| CB-SPS-3FN-96 | Flat face + threaded | Up to 8700 PSI, spill-free disconnection | High-pressure systems |
| CB-SPS-3FN-W6000 | Dual shut-off valve threaded | Bi-directional, anti-vibration design | Mobile equipment |
| CB-SPB-3FN | Brass threaded | Compact, corrosion-resistant | Urban & low-pressure vehicles |
| CB-SPS-3FN-WA56000 | Threaded + locking sleeve | Dust-sealed, high integrity locking | Outdoor service units |
Click each model to view technical specs or submit an inquiry.
