Place of Origin:
Shanghai, China
Nama merek:
Carterberg
Sertifikasi:
IATF16949
Model Number:
CB-SPS-3FN-BA
| Parameter | Nilai |
|---|---|
| Model | CB-SPS-3FN-BA |
| Jenis koneksi | Kunci Sleeve Threaded |
| Jenis katup | Penutupan ganda |
| Bahan segel | NBR (Buna-N) |
| Bahan tubuh | Baja berlapis krom |
| Tekanan nominal | 10,000 PSI (1/4", 3/8", 1/2") 8,500 PSI (3/4") 6,000 PSI (1") |
| Aliran nominal (GPM) | 3, 6, 12, 28, 50 |
| Kisaran suhu | 20°C sampai +120°C |
| Ukuran Tersedia | 1/4", 3/8", 1/2", 3/4", 1" |

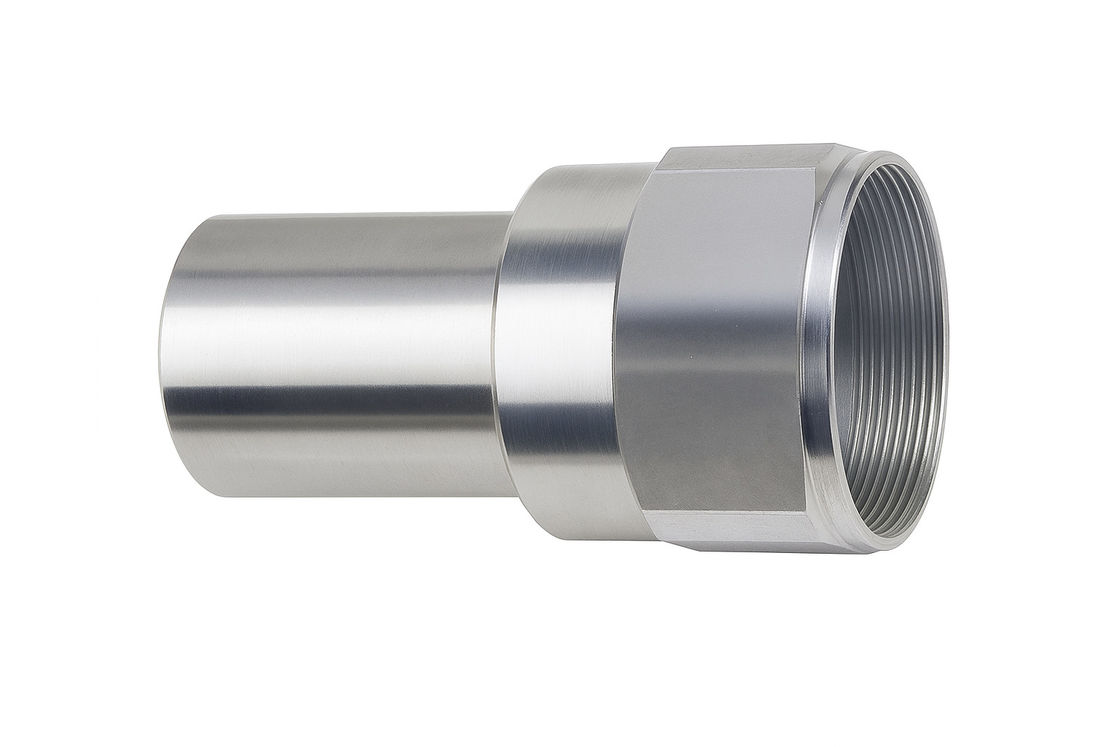

Famale (Socket)
| Bagian NO. | LS | D | HEX1 | A | T |
| CB-S2S-BA | 58.9 | S32六角 | S19 ke samping | 13 | G1/4 NPT1/4 |
| CB-S3S-BA | 66.5 | S36六角 | S22 ke samping | 16 | G3/8 NPT3/8 |
| CB-S4S-BA | 76.5 | S39六角 | S27 ke samping | 18 | G1/2 NPT1/2 |
| CB-S6S-BA | 89.5 | S50六角 | S35 ke samping | 20.5 | G3/4 NPT3/4 |
| CB-S8S-BA | 105.5 | S65六角 | S41 ke samping | 20.5 | G1 NPT1 |

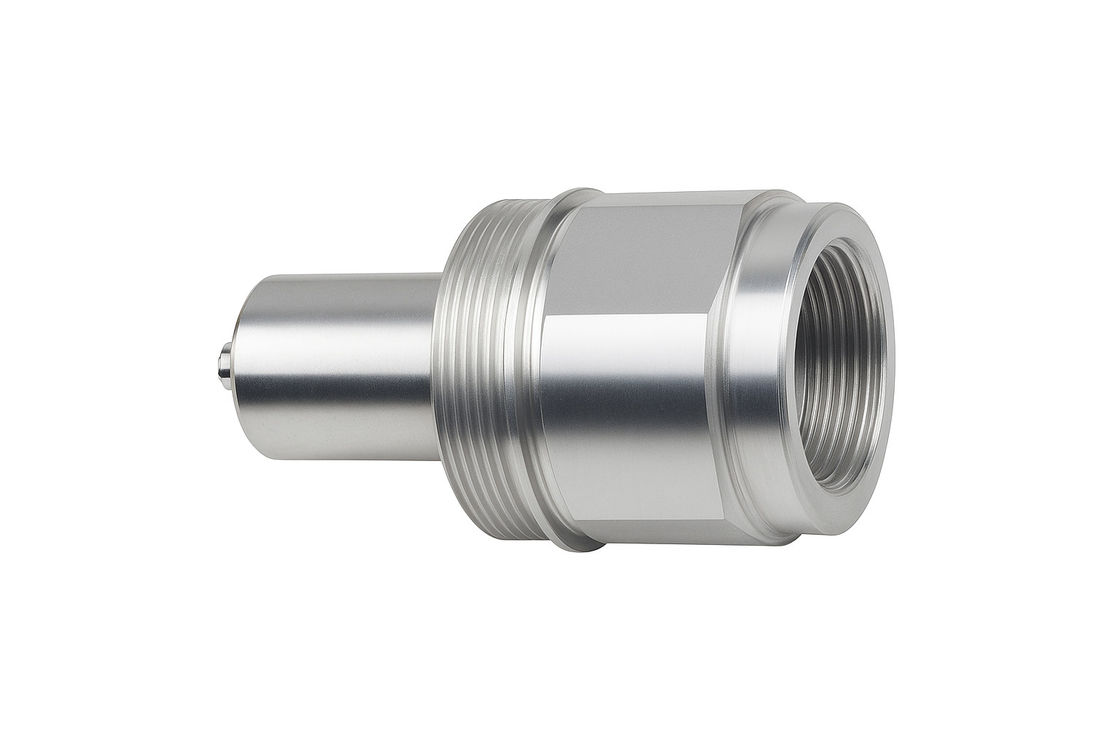

Mmale (Plug)
| Bagian NO. | LP | C | HEX2 | A | T |
| CB-P2S-BA | 36 | 12.5 | S19 ke samping | 13 | G1/4 NPT1/4 |
| CB-P3S-BA | 40.5 | 16 | S22 ke samping | 16 | G3/8 NPT3/8 |
| CB-P4S-BA | 49 | 17 | S27 ke samping | 18 | G1/2 NPT1/2 |
| CB-P6S-BA | 56 | 19 | S35 ke samping | 20.5 | G3/4 NPT3/4 |
| CB-P8S-BA | 66 | 22 | S41 ke samping | 20.5 | G1 NPT1 |
| Fitur | Manfaat |
|---|---|
| Kunci benang lengan | Mencegah longgar di bawah getaran atau denyut nadi |
| Baja berlapis krom | Tahan korosi dan kerusakan permukaan |
| Katup penutupan ganda | Mengurangi kontaminasi dan kebocoran |
| Keterlibatan tanpa alat | Memungkinkan penggunaan lapangan yang aman oleh operator |
