Place of Origin:
Shanghai, China
Nama merek:
Carterberg
Sertifikasi:
IATF16949
Model Number:
CB-SPS-3FN-CVV
| Parameter | Nilai |
|---|---|
| Model | CB-SPS-3FN-CVV |
| Jenis Koneksi | Lengan berulir dengan cincin pengunci |
| Jenis Katup | Penutupan ganda |
| Material Segel | NBR (Buna-N) |
| Material Bodi | Baja berlapis krom |
| Ukuran yang Tersedia | 1/4", 3/8", 1/2", 3/4", 1" |
| Tekanan Terukur | 5000 PSI (1/4", 3/8", 1/2")4500 PSI (3/4", 1") |
| Laju Aliran Terukur (GPM) | 3, 6, 12, 28, 50 |
| Rentang Suhu | –20°C hingga +120°C |
| Kompatibilitas Pertukaran | Seri Faster CVV, Seri Stucchi VD |
Betina (Soket)
| NOMOR BAGIAN | LS | D | HEX1 | HEX3 | A | T |
| CB-S2S-CVV | 58.6 | 34 | S19六角 | S30对边 | 13 | G1/4 NPT1/4 |
| CB-S3S-BA | 66.5 | 34 | S22六角 | S30对边 | 13 | G3/8 NPT3/8 |
| CB-S4S-BA | 76.5 | 42 | S27六角 | S36对边 | 18 | G1/2 NPT1/2 |
| CB-S6S-BA | 89.5 | 48 | S36六角 | S41对边 | 18 | G3/4 NPT3/4 |
| CB-S8S-BA | 105.5 | 56.5 | S41六角 | S51对边 | 24.5 | G1 NPT1 |

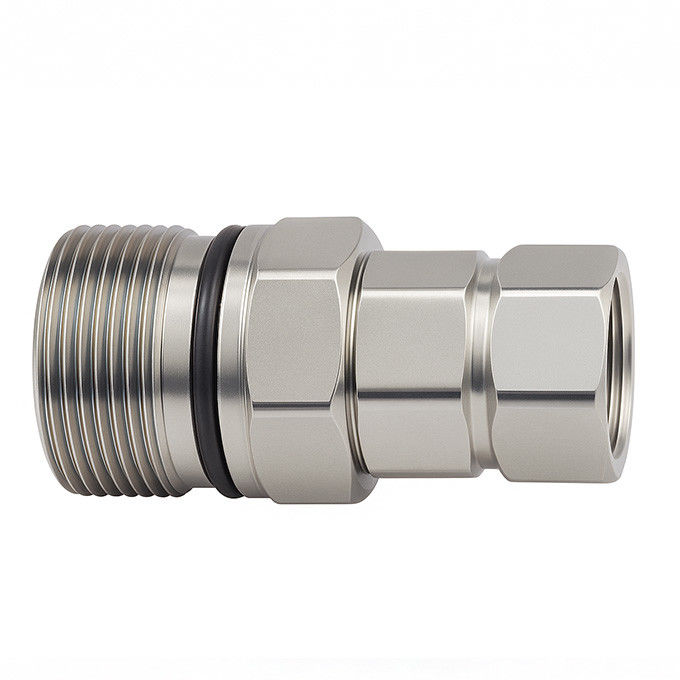

Jantan (Steker)
| NOMOR BAGIAN | LP | d | HEX2 | A | T |
| CB-P2S-CVV | 60 | M24*2 | S19六角 | 13 | G1/4 NPT1/4 |
| CB-P3S-BA | 55.3 | M28*2 | S22六角 | 13 | G3/8 NPT3/8 |
| CB-P4S-BA | 61.5 | M36*2 | S27六角 | 18 | G1/2 NPT1/2 |
| CB-P6S-BA | 83.5 | M42*2 | S36六角 | 18 | G3/4 NPT3/4 |
| CB-P8S-BA | 94.5 | M48*3 | S41六角 | 24.5 | G1 NPT1 |
| Fitur | Fungsi |
|---|---|
| Koneksi berulir lengan-kunci | Cengkeraman kuat dan integritas tekanan di bawah getaran |
| Katup poppet penutupan ganda | Pelepasan anti bocor selama pengoperasian yang sering |
| Pelapisan anti karat | Kinerja luar ruangan yang stabil |
| Cincin penahan katup | Memastikan dudukan dan keselarasan katup yang positif |
