Tempat asal:
Shanghai, Cina
Nama merek:
Carterberg
Sertifikasi:
IATF16949
Nomor model:
CB-SPS-3F-BD
Kinerja tugas berat untuk aplikasi impuls yang menuntut

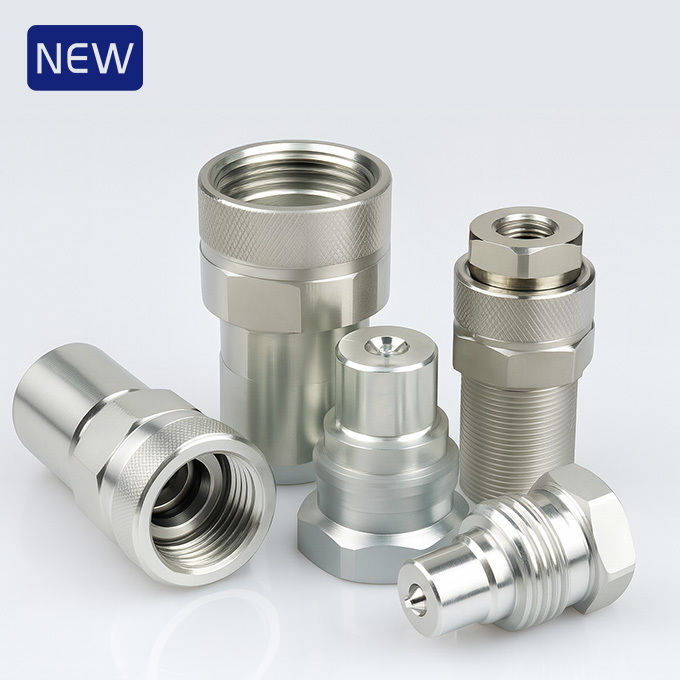

Gabungan cepat CB-SPS-3F-BD dari Carterberg dirancang untuk kondisi ekstrim.Ini menawarkan kinerja yang dapat diandalkan dalam peralatan mobile, pertanian, dan sistem industri yang menghadapi aliran tinggi dan lonjakan tekanan.
| Spesifikasi | Nilai |
|---|---|
| Jangkauan Ukuran | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| Tekanan nominal | 5,000 ¢ 10,000 PSI |
| Aliran Nominal | 2 ¢ 200 GPM |
| Kisaran suhu | -20°C sampai +120°C |
| Bahan segel | NBR (Nitrile) |
| Jenis koneksi | Thread-to-connect, manual |

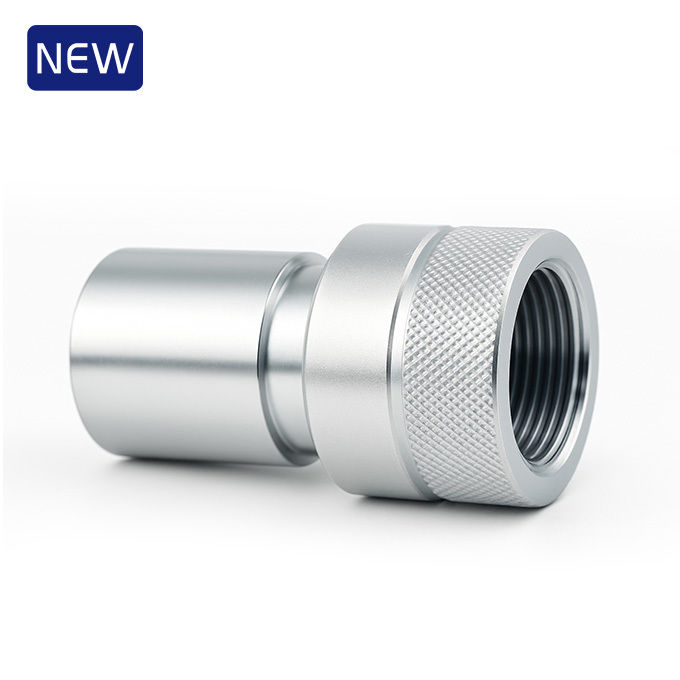

Wanita (Socket)
|
Bagian NO |
LS |
D |
HEX1 |
HEX3 |
A |
T |
|
CB-S2S-3FN-BD |
68 |
30 |
23 |
27 |
16 |
G1/4 NPT1/4 |
|
CB-S3S-3FN-BD |
75.6 |
39.7 |
30 |
36 |
14.5 |
G3/8 NPT3/8 |
|
CB-S4S-3FN-BD |
86.4 |
45 |
34 |
41 |
19 |
G1/2 NPT1/2 |
|
CB-S6S-3FN-BD |
105.5 |
53.8 |
41 |
50 |
23 |
G3/4 NPT3/4 |
|
CB-S8S-3FN-BD |
123 |
58.8 |
50 |
55 |
23 |
G1 NPT1 |
|
CB-S10S-3FN-BD |
152.5 |
78.5 |
65 |
75 |
26 |
G1-1/4 NPT1-1/4 |
|
CB-S12S-3FN-BD |
172 |
98 |
75 |
90 |
27 |
G1-1/2 NPT1-1/2 |
|
CB-S16S-3FN-BD |
206.5 |
129 |
100 |
125 |
27 |
G2 NPT2 |

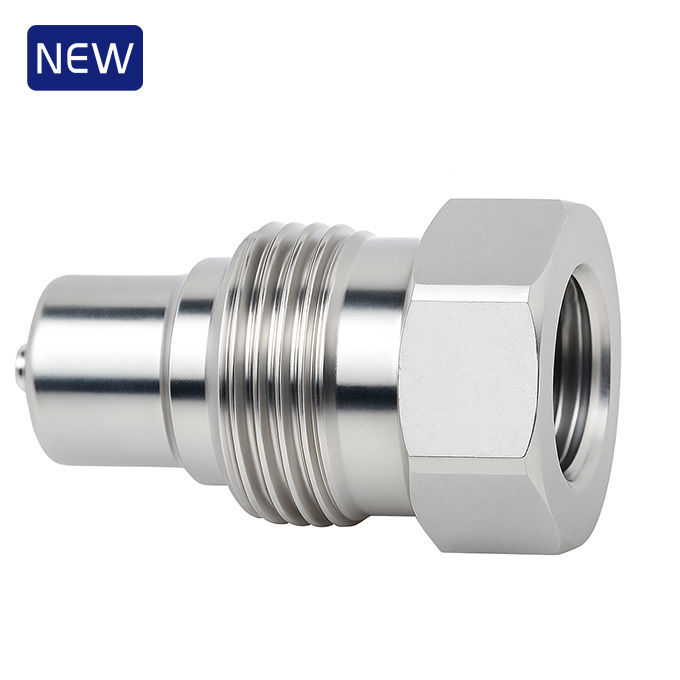

Pria (Plug)
|
Bagian NO |
LP |
HEX2 |
A |
T |
|
CB-P2S-3FN-BD |
43 |
25 |
13 |
G1/4 NPT1/4 |
|
CB-P3S-3FN-BD |
48 |
32 |
16 |
G3/8 NPT3/8 |
|
CB-P4S-3FN-BD |
53 |
34 |
18 |
G1/2 NPT1/2 |
|
CB-P6S-3FN-BD |
63 |
46 |
21 |
G3/4 NPT3/4 |
|
CB-P8S-3FN-BD |
72 |
50 |
23 |
G1 NPT1 |
|
CB-P10S-3FN-BD |
86 |
65 |
26 |
G1-1/4 NPT1-1/4 |
|
CB-P12S-3FN-BD |
95 |
80 |
27 |
G1-1/2 NPT1-1/2 |
|
CB-P16S-3FN-BD |
118 |
110 |
27 |
G2 NPT2 |
