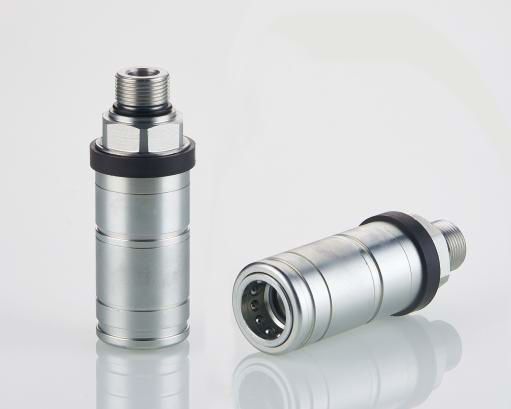

Name: CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-205
Availability: InStock

Rumah > Produk > Penghubung Cepat Hidraulik >

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

Tempat asal:

Cina

Nama merek:

carterberg

Sertifikasi:

IATF16949

Nomor model:

CB-205

Hubungi Kami

Minta Kutipan

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

Detail Produk

Jenis:

ISO 7241A

Bahan:

baja berlapis seng, baja tahan karat

Ukuran:

1/4''-1''

Tekanan Dinilai:

Naik 2900 psi （20 MPa）

Bahan sealant:

NBR (Standar), Viton, EPDM (Opsional)

Koneksi:

Pasang dan Soket

Katup:

Bola / Poppet

Pertukaran:

Kompatibel dengan Parker 6600, Anv Lebih Cepat, Seri Stucchi, dll.

Persyaratan Pembayaran & Pengiriman

Kuantitas min Order

Perundingan

Harga

Bisa dinegosiasikan

Kemasan rincian

Karton

Waktu pengiriman

7-20 hari kerja

Syarat-syarat pembayaran

L/C, D/A, D/P, T/T, Western Union

Menyediakan kemampuan

5000 ~ 20000 PC/bulan

Produk terkait

CB-Q/ZB275 Thread-Locked Hydraulic Quick Coupling – Manual Push-Pull for Low-Pressure Applications

Dapatkan Harga Terbaik

70MPa Steel Hydraulic Quick Coupling for Ultra-High Pressure Equipment (CB-TQ)

Dapatkan Harga Terbaik

CB-YM Coal Mine Quick Couplings - Chrome Plated Carbon Steel - Dn10-Dn52 Threads

Dapatkan Harga Terbaik

High-Pressure 316 Stain Steel CB-QC Quick Connector FKM Sealing Swagelok Compatible

Dapatkan Harga Terbaik

Hubungi Kami

86-021-37214610

Hubungi Sekarang

Deskripsi produk

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

The CB-205 Series hydraulic quick couplings are engineered for heavy-duty applications in construction, forestry, and hydraulic machinery. Featuring a double-acting sleeve for one-handed push-to-connect operation, they ensure efficient coupling even in clamp or bulkhead mounts. Equipped with poppet valves to prevent uncoupled leakage, these couplings maintain automatic flow within rated pressure for uninterrupted performance. Critical hardened components enhance durability, while ISO5675 compliance guarantees reliability. Compatible with PARKER 4250 and FASTER CPV-CNV Series, they offer seamless integration into existing systems. Ideal for demanding industrial environments, these couplings prioritize safety, ease of use, and robust performance.

Technical Specifications

BODY SIZE	Rated Pressure (PSI)	Rated Flow (GPM)	Temperature range(std seals)	Standard seal material
1/2"	3000	12	-20℃~+80℃	NBR

Dimensional Overview

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry 0

Body Size	PARTNO.	LS	Φ D	HS	A	T
1/2"	CB-205	111	38	32	23.8	BSP1/2 NP T1/2
